Description
Clavicula sine exceptione — No rule without exception!Behold, our primo, all-carbon crank with a built-in carbon axle! It's unlike any other out there. We poured all our energy into perfecting its shape and structure, scrutinizing every load-bearing route.
This crankset is super stiff in all directions, which is just what you need for full power transfer without wasting any energy! We're pretty excited about the clever carbon-to-carbon connection between the left crank and axle - THM is the first to make this happen in bicycle drivetrain production.
Banishing friction and silencing sounds, the outer and inner splines are expertly aligned for minimal wear. Plus, at only 293 grams with its spider, the Clavicula SE triumphs over our own standards and sets the trend for crankset excellence.
TECHNICAL INFO
|
Weight (±5%): |
about 302 g (0.67 lb) for cranksystem Standard and about 293 g (0.65 lb) for cranksystem Compact |
|
Mounting |
fits any frame with standard 68 mm BSA shell. Available for BB30, BB30A, Pressfit30, Shimano Pressfit, Italian threading, BB386 EVO, BBright™-Pressfit BBright™ Direct Fit (only Cervelo frame R5ca) also available BB 386 (only AX Lightness frame ViAL EVO) also available |
|
Chainrings |
THM-Carbones recommend Carbon-Ti chainrings (12s), Chainrings not included |
|
Q-Factor |
148 mm |
|
Chainline |
43,5 mm |
|
Inner width of the cranks |
118 mm |
|
Available lengths |
165, 170, 172,5 or 175 mm |
|
Max. permissible total weight |
110 kg (243 lb) |

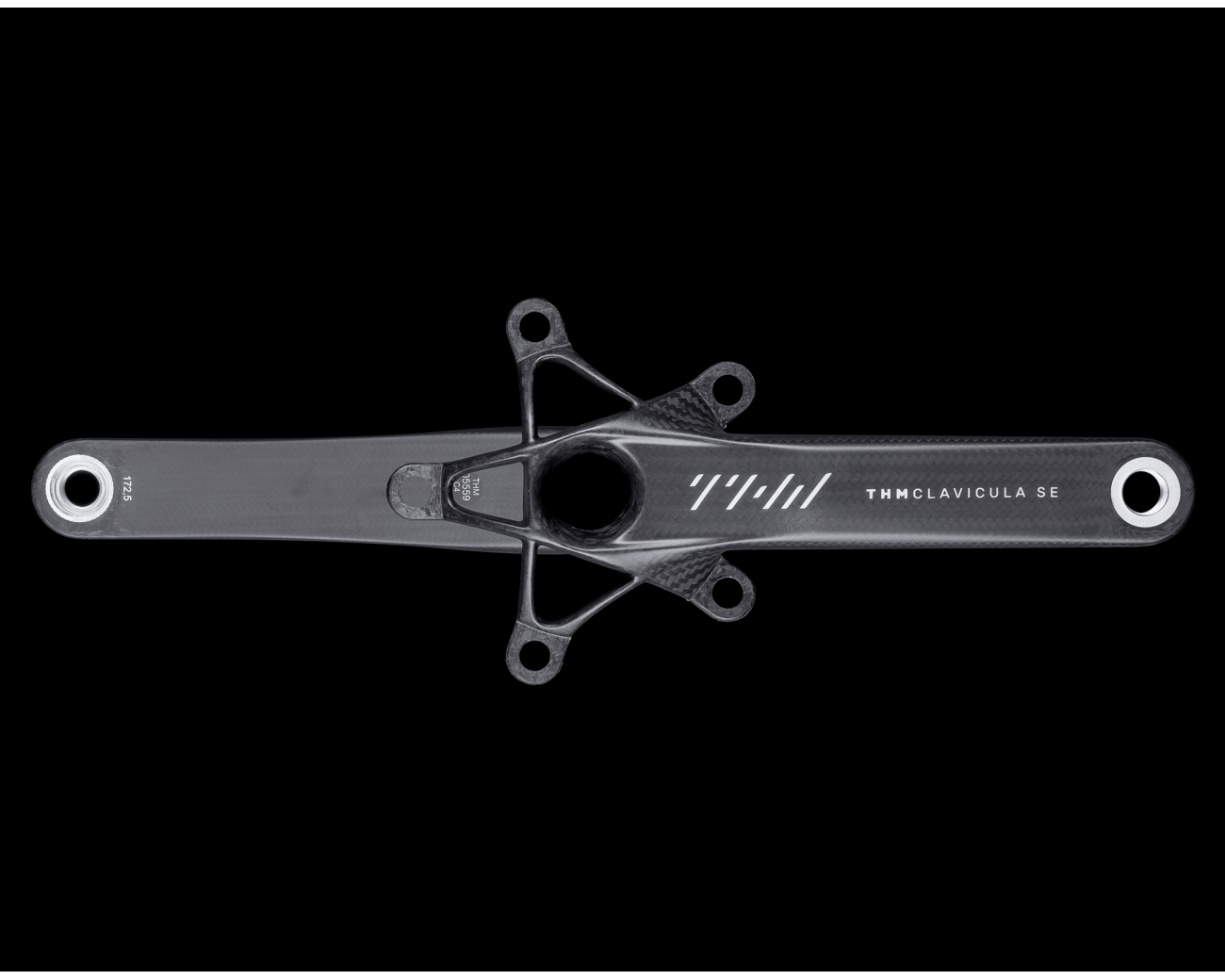

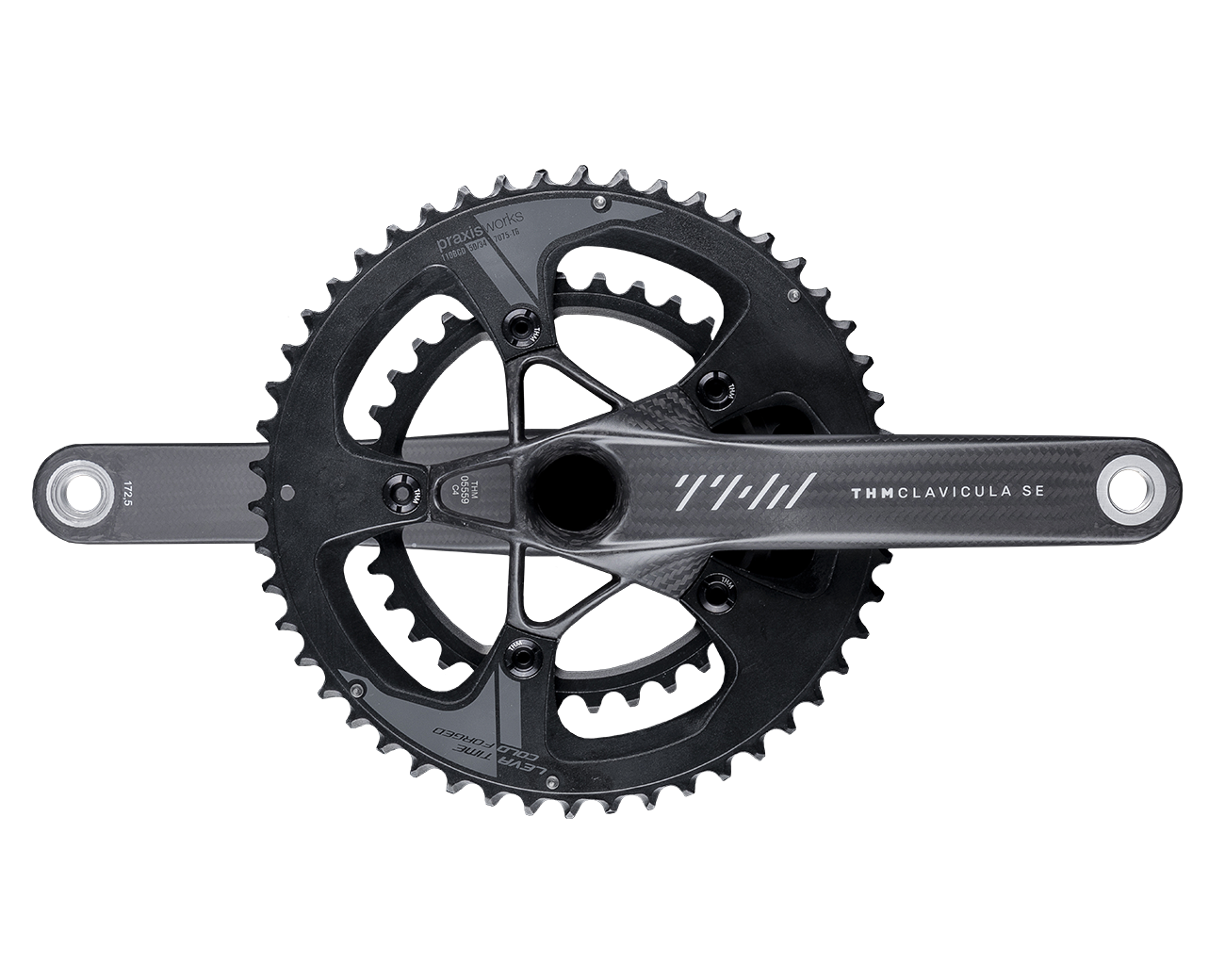

THM Clavicula SE Compact Crankset 170mm Matte
$1,500.00
1 in stock Most ordered are processed in 1-2 business days and are shipped with UPS ground, USPS Ground Advantage, or USPS First Class. Call for expedited shipping
