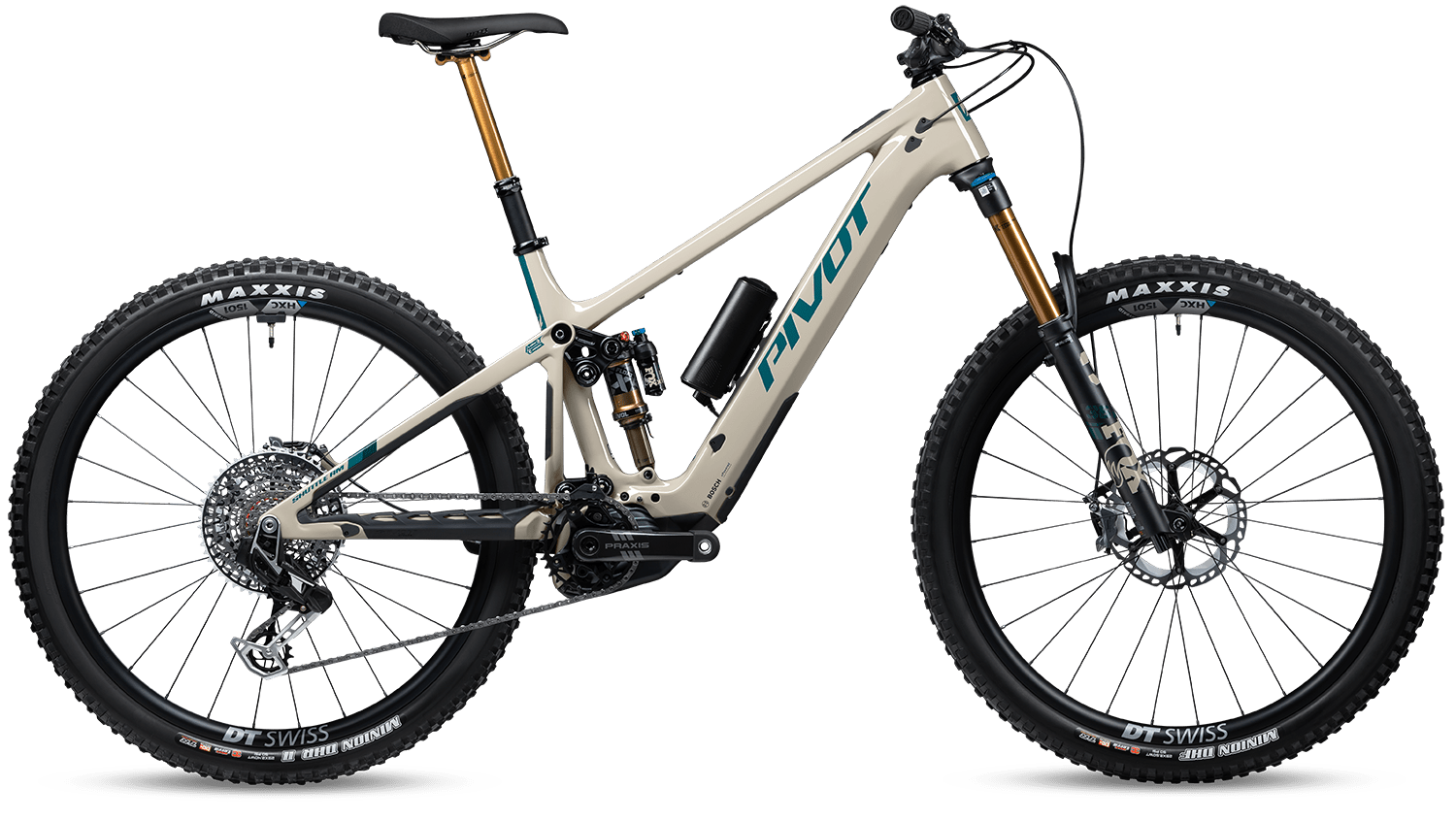

Pivot Shuttle AM Pro X0 Transmission
Description
- Ultralight Hollow Core Carbon Frame
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
- Bosch 250wh PowerMore Range Extender Compatible
- Integrated Power and Mode Display
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fox Factory and Performance 36 Forks
- Flip-Chip Upper Link Mount
- Mixed Wheel Compatible
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
Specs:
| KIT | Pro X0 Eagle Transmission |
| WHEEL SIZE | 29" |
| FRAME | Shuttle AM |
| WHEEL MATERIAL | Alloy |
| REAR SHOCK | Fox Factory Float X |
| FORK | Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm |
| HEADSET | Pivot Precision Sealed Cartridge |
| REAR DER | Sram X0 Eagle Transmission 12-Speed |
| CASSETTE | Sram X0 1295 Eagle Transmission 10-52t |
| SHIFTER | Sram AXS Pod Controller |
| BRAKES | Sram Maven Silver 4-piston |
| CRANKSET | Praxis Alloy eCranks E-MTB 34t - 160mm |
| HANDLEBAR | Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL) |
| GRIPS | Phoenix Factory Lock-On |
| STEM | Phoenix Team Enduro/Trail - 45mm |
| SEATPOST | Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL) |
| SADDLE | Phoenix WTB Pro High Tail Trail (SM), Phoenix WTB Pro Volt Medium (MD), Pivot Pro E-Bike (LG-XL) |
| WHEELS | DT Swiss Hybrid HX1501, 30mm - 29" 15x110 F/12x157 R |
| TIRES | Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA |
| ROTOR | Sram Centerline Centerlock - 200mm Sram Centerline Centerlock - 200mm |
| CHAIN | Sram X0 Eagle Flattop 12-Speed |
| DRIVE UNIT | Bosch Performance CX / Powertube 750wh |
$10,599.00
